Product Introduction

Model:

GPE-DD201

Product Introduction:

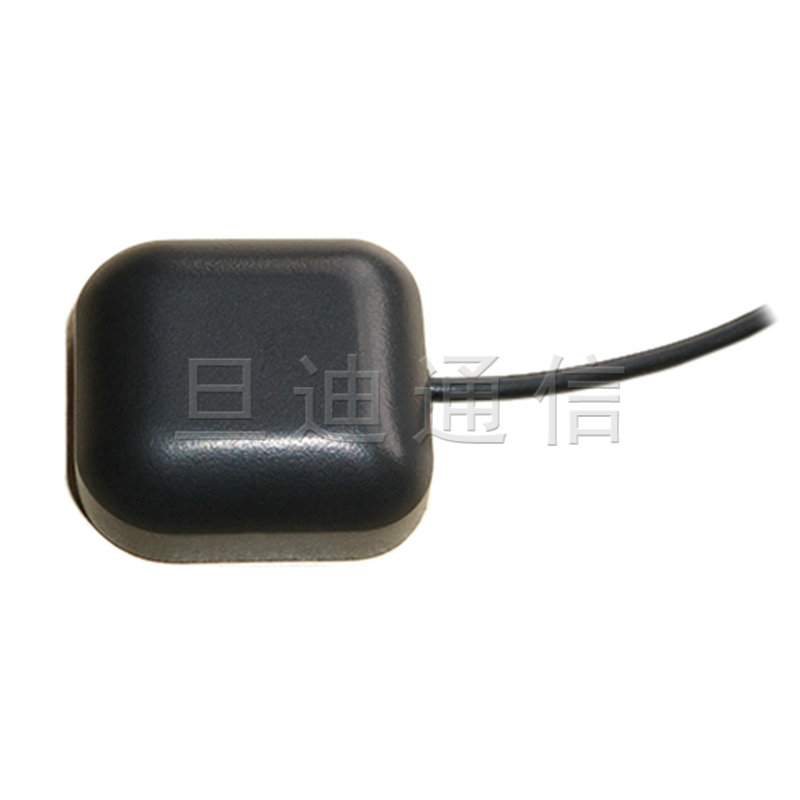

Product Description : 1、GPS External Antenna,dimension:33mmX36mmX13.5mm; 2、High gain, high sensitivity, fast positioning supported; 3、Mounting Method:Magnet/Adhesive; 4、Cable length:RG174(0-8m); 5、Both factory-in

SLU0226DS
SLU0226DS
Product description
Product Description
1、GPS External Antenna,dimension:33mmX36mmX13.5mm;
2、High gain, high sensitivity, fast positioning supported;
3、Mounting Method:Magnet/Adhesive;
4、Cable length:RG174(0-8m);
5、Both factory-installed and aftermarket-installed GPS navigation and positioning equipment are supported.

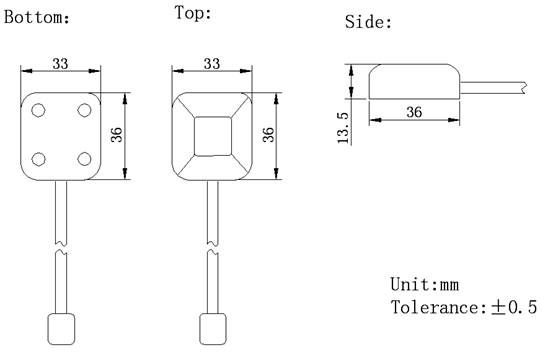

Product Dimension



Product Introduction

Antenna
Center Frequency
1575.42±1.023MHz
Bandwidth
10MHz min
Peak Gain
5dBic
Axial Ratio 3.0dB max
V.S.W.R 1.5dB max
Impedance 50Ω
Polarization RHCP
LNA
Center Frequency
1575.42±1.023MHz
Gain
30±2dB
Noise Figure
1.5dB max
Ex-band Attenuation 40dB@CF+60MHz/40dB@CF-60MHz
Voltage DC 3.0~5.0V
Current 11±2 mA
V.S.W.R 2.0dB max
Mechanical Cable RG174
Connector GT5/SMA/FAKRA or others
Radome Material ABS
Ingress Protection IP67
Mounting Method Magnet/Adhesive
Environmental Operating Temperature -40℃ to +85℃
Relative Humidity Up to 95℃
Vibration 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly ROHS Compliant
