Product Introduction

Model:

GPH-DD901

Product Introduction:

Product Description : 1、GPS Hign Gain Antenna,dimension:120mmX100mm; 2、High gain, high sensitivity, fast positioning supported 3、Mounting Method:pole; 4、Cable length:RG58(0-30m); 5、The utility model can be widely u

SLU0226DS
SLU0226DS
Product description
Product Description
1、GPS Hign Gain Antenna,dimension:120mmX100mm;
2、High gain, high sensitivity, fast positioning supported
3、Mounting Method:pole;
4、Cable length:RG58(0-30m);
5、The utility model can be widely used in ship navigation equipment, base station navigation and positioning equipment and production line positioning test;

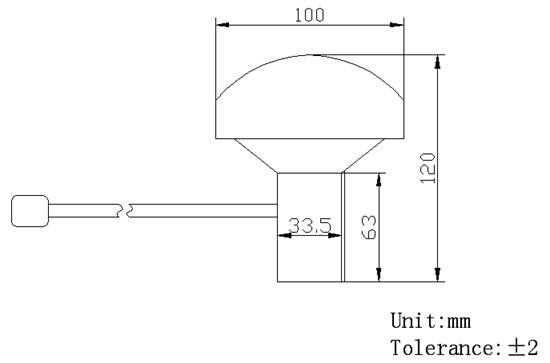

Product Dimension



Product Introduction

Antenna
Center Frequency
1575.42±1.023MHz
Bandwidth
10MHz min
Peak Gain
4dBic
Axial Ratio 3.0dB max
V.S.W.R 1.5dB max
Impedance 50Ω
Polarization RHCP
LNA
Center Frequency
1575.42±1.023MHz
Gain
38±2dB
Noise Figure
1.5dB max
Ex-band Attenuation 40dB@CF+60MHz/40dB@CF-60MHz
Voltage DC 3.0~5.0V
Current 13±2 mA
V.S.W.R 2.0dB max
Mechanical Cable RG58
Connector BNC/TNC/SMA or others
Radome Material ABS
Ingress Protection IP67
Mounting Method pole
Environmental Operating Temperature -40℃ to +85℃
Relative Humidity Up to 95℃
Vibration 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly ROHS Compliant
