| Antenna |
Center Frequency |
L1:1575.42±1.023 MHz B1:1561.098±2 MHz |
|
Bandwidth |
10MHz min | ||

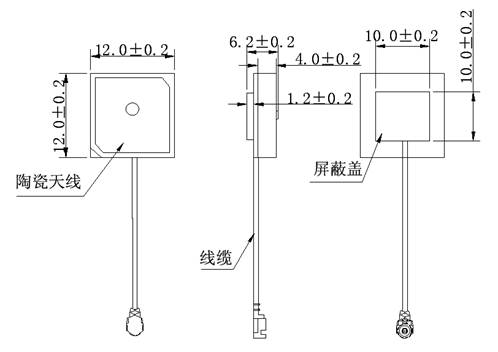

Dimension |
12X12X4 | 12X12X2 | |
Peak Gain |
-1.5dBi | -2.0dBi | |
| Axial Ratio | 3.0dB max | ||
| V.S.W.R | 1.5dB max | ||
| Impedance | 50Ω | ||
| Polarization | RHCP | ||
| LNA |
Center Frequency |
1568±1.023MHz | |
Gain |
L1:17±2 dB B1:17±2 dB |
||
Noise Figure |
1.5dB max | ||
| Ex-band Attenuation | 40dB@CF+60MHz/40dB@CF-60MHz | ||
| Voltage | DC 3.0±0.3V | ||
| Current | 10±2 mA | ||
| V.S.W.R | 2.0dB max | ||
| Mechanical | Cable | RF1.13/RF0.81 | |
| Connector | IPX1/2/3/4 or others | ||
| Radome Material | ceramics | ||
| Mounting Method | Adhesive | ||
| Environmental | Operating Temperature | -40℃ to +85℃ | |
| Relative Humidity | Up to 95℃ | ||
| Environmentally Friendly | ROHS Compliant | ||
