BTM-C802

Product Introduction：

Product Description ： 1、Fully embedded Bluetooth 3.0+4.0； 2、High performance、low power consumption，dimension：30.4mmX15.26 mmX 2.40mm； 3、Supports enhanced audio and DSP Applications，support communication with smart ready

Product description

Product Description：
1、Fully embedded Bluetooth 3.0+4.0；
2、High performance、low power consumption，dimension：30.4mmX15.26 mmX 2.40mm；
3、Supports enhanced audio and DSP Applications，support communication with smart ready devices；
4、The utility model can be widely used in a variety of Bluetooth devices；

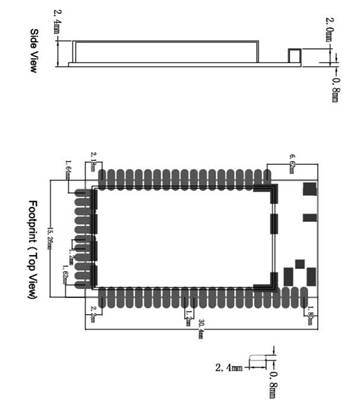

Product Dimension：

Product Introduction：

Bluetooth	Version	Bluetooth 3.0+Bluetooth 4.0
	Security	Secure simple pairing and safer
	BR/EDR connections	7
	Class	II 級
Radio	Frequency	2.402GHz to 2.480GHz
	Modulations	GFSK, π/4-DQPSK and 8DPSK
	Transmit power	+8dBm
	Receiver sensitivity	-86dBm
Hardware	Host interfaces	UART,PIO,AIO,SPI,PCM etc.
	GPIO	30mA
	Discoverable/Connectable	0.05mA with deep sleep
	Connected	Audio streaming: 35mA
	Max working current	30mA
	Power supply	3.3 to 4.2V
Audio Features and Interfaces	Codec	Built in 64-bit stereo codec
	Analog interface	Dual ADC and DAC
	Microphone	Dual Microphone
	Software codec	Aptex and AAC
	Echo cancellation	CVC 5th generation
Environmental	Temperature	-40℃ to +85℃
	Humidity	Up to 95℃
	Weight	1.2g
	Environmentally Friendly	ROHS Compliant
