Product Introduction

Model:

GPM-DD301D

Product Introduction:

Product Description : 1、Integrated GPS module and GPS antenna integrated equipment; 2、High performance, low power consumption, fast positioning, dimension:28.0mmX25.0mm X 6.2mm; 3、Mounting Method:1.25-5A; 4、The utility m

SLU0226DS
SLU0226DS
Product description
Product Description
1、Integrated GPS module and GPS antenna integrated equipment;
2、High performance, low power consumption, fast positioning,
      dimension:28.0mmX25.0mm X 6.2mm;
3、Mounting Method:1.25-5A;
4、The utility model can be widely used in GPS Positioning Equipment;

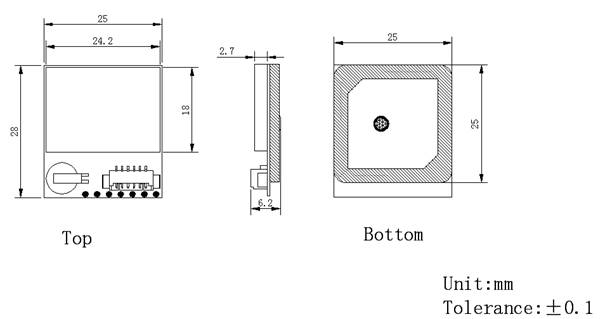

Product Dimension


Product Introduction

Chip MediaTek MT3339
Frequency GPS: L1 1575.42MHz
Channels Support 66 channels
Update rate 1Hz default
Sensitivity Tracking -163dBm (with external LNA)
Acquisition Hot start
(Open Sky)
1s (typical)
Cold Start
(Open Sky)
33s (typical)
Position Accuracy Autonomous 2.5m CEP(50%)
Limit value Max. Altitude < 18,000 m (Max)
Max. Velocity < 515 m/s  (Max)
Protocol Support NMEA 0183 ver 3.01 9600 bps, 8 data bits, no parity, 1 stop bits (default)
1Hz: GGA, GLL, GSA, RMC, VTG
Input Voltage VCC 5.0±0.3V
V_BCKP 2.0V~ 4.3V
Supply Current Acquisition 40mA  @3.3V (typical)
Battery Current VCC=0V 7uA  @(typical)
Temperature Operating Temperature -40 ~ +85℃
Storage Temperature -40 ~ +85℃
Weight <3g
