Product Description ： 1、High performance, high sensitivity, support 2.4G ~ 2.5G band； 2、Ultra small size，dimension：3.20mmX1.60mmX1.20mm； 3、The utility model can be widely used in WiFi, Bluetooth device terminal； Product Di

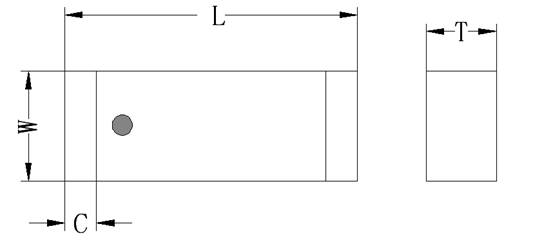

| L(mm) | 3.20±0.20 |
| W(mm) | 1.60±0.20 |
| T(mm) | 1.20±0.20 |
| Antenna |
Center Frequency |
2.4-2.5GHz |
Bandwidth |
160MHz typ | |
Peak Gain |
5.05dBic typ | |
| V.S.W.R | 1.5dB max | |
| Impedance | 50Ω | |
| Azimuth Beamwidth | Omni-directional | |
| Mechanical | Radome Material | ceramics |
| Environmental | Operating Temperature | -40℃ to +105℃ |
| Relative Humidity | -40℃ to +105℃ | |
| Environmentally Friendly | ROHS Compliant |
