Product Introduction

Model:

GPI-DD156T4/2

Product Introduction:

Product Description : 1、GPS Internal Antenna,dimension:15mm6mm6.5mm/15mm6mm4.5mm; 2、Low voltage ,low power consumption, high sensitivity, fast positioning supported; 3、Mounting Method:Adhesive; 4、Wireless center freque

SLU0226DS
SLU0226DS
Product description
Product Description

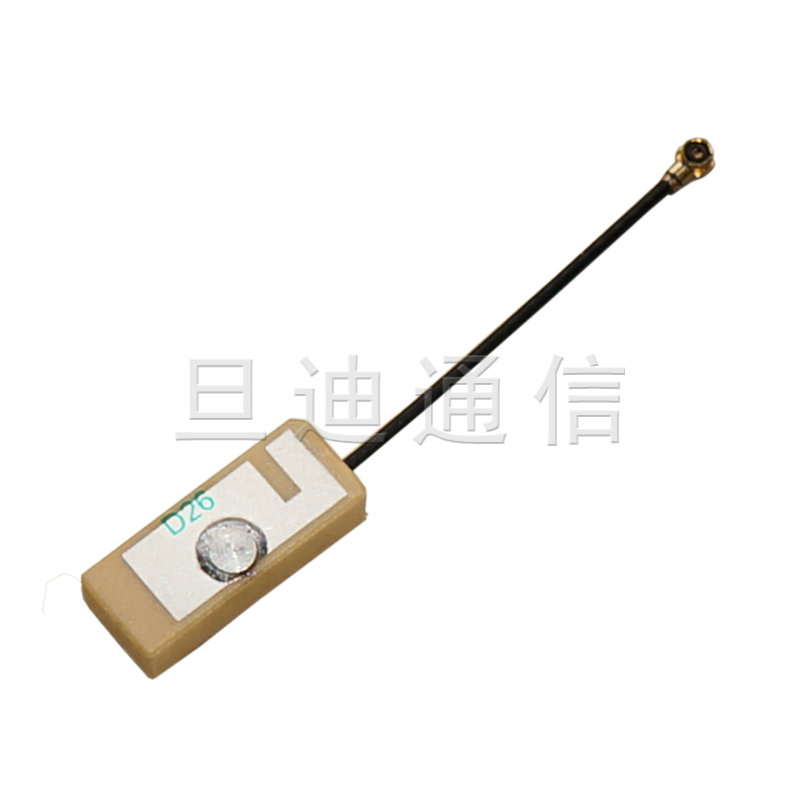

1、GPS Internal Antenna,dimension:15mm×6mm×6.5mm/15mm×6mm×4.5mm;
2、Low voltage ,low power consumption, high sensitivity, fast positioning supported;
3、Mounting Method:Adhesive;
4、Wireless center frequency, cable length can be customized;
5、The utility model can be widely used in portable handhold navigation and positioning equipment, industry navigation positioning equipment;

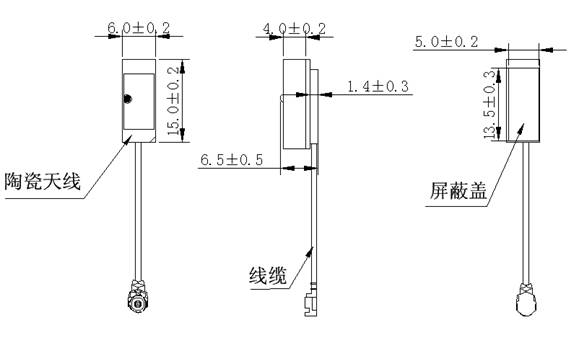

Product Dimension



Product Introduction

Antenna
Center Frequency
1575.42±1.023MHz
Bandwidth
10MHz min
Dimension
15X6X4 15X6X2
Peak Gain
-2.5dBi -3.0dBi
Axial Ratio 3.0dB max
V.S.W.R 1.5dB max
Impedance 50Ω
Polarization RHCP
LNA
Center Frequency
1575.42±1.023MHz
Gain
18±2dB
Noise Figure
1.5dB max
Ex-band Attenuation 40dB@CF+60MHz/40dB@CF-60MHz
Voltage DC 3.0±0.3V
Current 10±2 mA
V.S.W.R 2.0dB max
Mechanical Cable RF1.13/RF0.81
Connector IPX1/2/3/4 or others
Radome Material ceramics
Mounting Method Adhesive
Environmental Operating Temperature -40℃ to +85℃
Relative Humidity Up to 95℃
Environmentally Friendly ROHS Compliant
